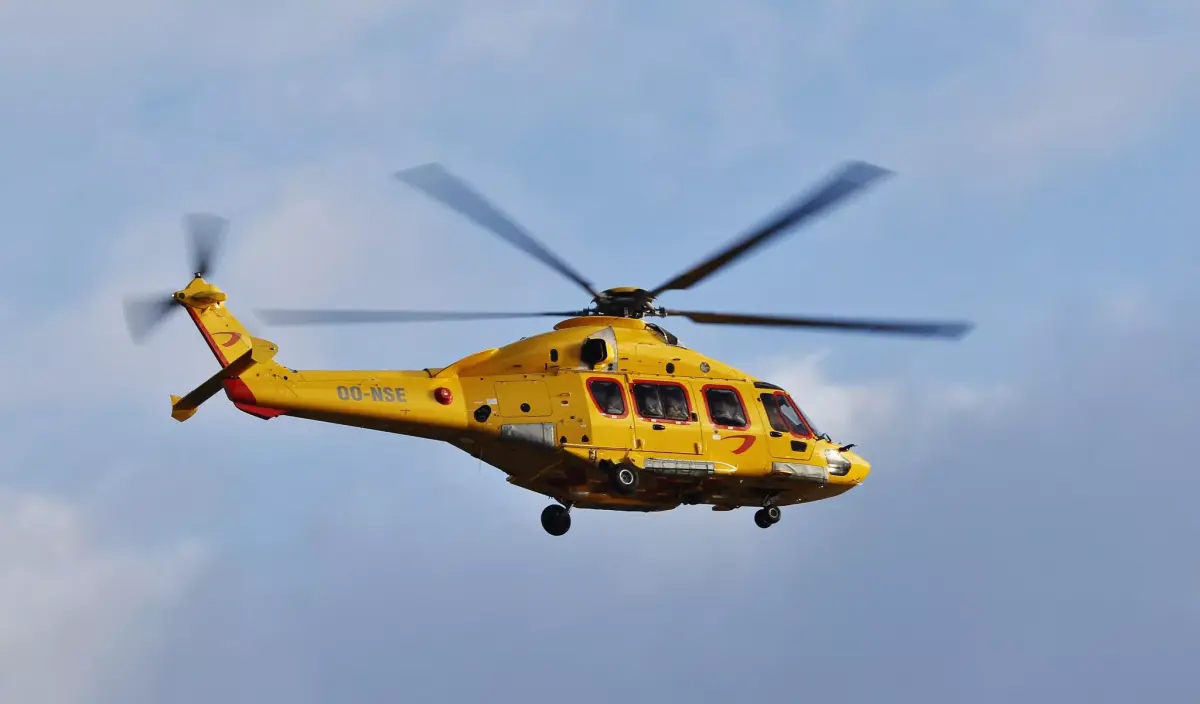

Airbus Helicopters · EC75

Airbus Helicopters H175 specs, size & range

The Airbus Helicopters H175 (ICAO code EC75) is a helicopter with 2 turboprop engines in the light wake-turbulence category. It is 15.7 m long, a maximum take-off weight of 7,800 kg and a range of 1,093 km.

Helicopter with 2 turboprop engines Wake category: Light Helicopters & rotorcraft

H175 specifications

Length: 15.68 m (51.4 ft)
Fuselage width: 3.35 m
Fuselage height: 4.84 m
Main rotor diameter: 14.80 m
Max take-off weight: 7,800 kg (17,196 lb)
Fuel capacity: 2,616 L (691 US gal)
Cruise speed: 144 kn (267 km/h)
Maximum speed: 175 kn (324 km/h)
Range: 590 nm (1,093 km)
Absolute ceiling: 15,000 ft (4,572 m)

Official type certificate →

The Airbus Helicopters H175 is a helicopter with 2 turboprop engines built by Airbus Helicopters. Air-traffic control and flight-tracking sites identify it by the ICAO type code EC75. It belongs to the light wake-turbulence category.

H175 size and dimensions

The H175 is 15.68 m (51.4 ft) long. That makes it the #2 longest of 12 helicopters & rotorcraft in our database — longer than 83% of them. Its fuselage is 3.35 m wide.

H175 weight and fuel

The maximum take-off weight is 7,800 kg (17,196 lb). Among helicopters & rotorcraft it ranks #3 of 12 by weight. The tanks hold 2,616 litres (691 US gallons), about 2.1 tonnes of jet fuel.

H175 speed and range

It cruises at about 267 km/h (144 knots), faster than 75% of helicopters & rotorcraft. Its range of 1,093 km (590 nm) suits short regional hops — about 4.1 hours at cruise speed. Its ceiling is 15,000 ft (4,572 m).
