Airbus · BCS1 · IATA CS1

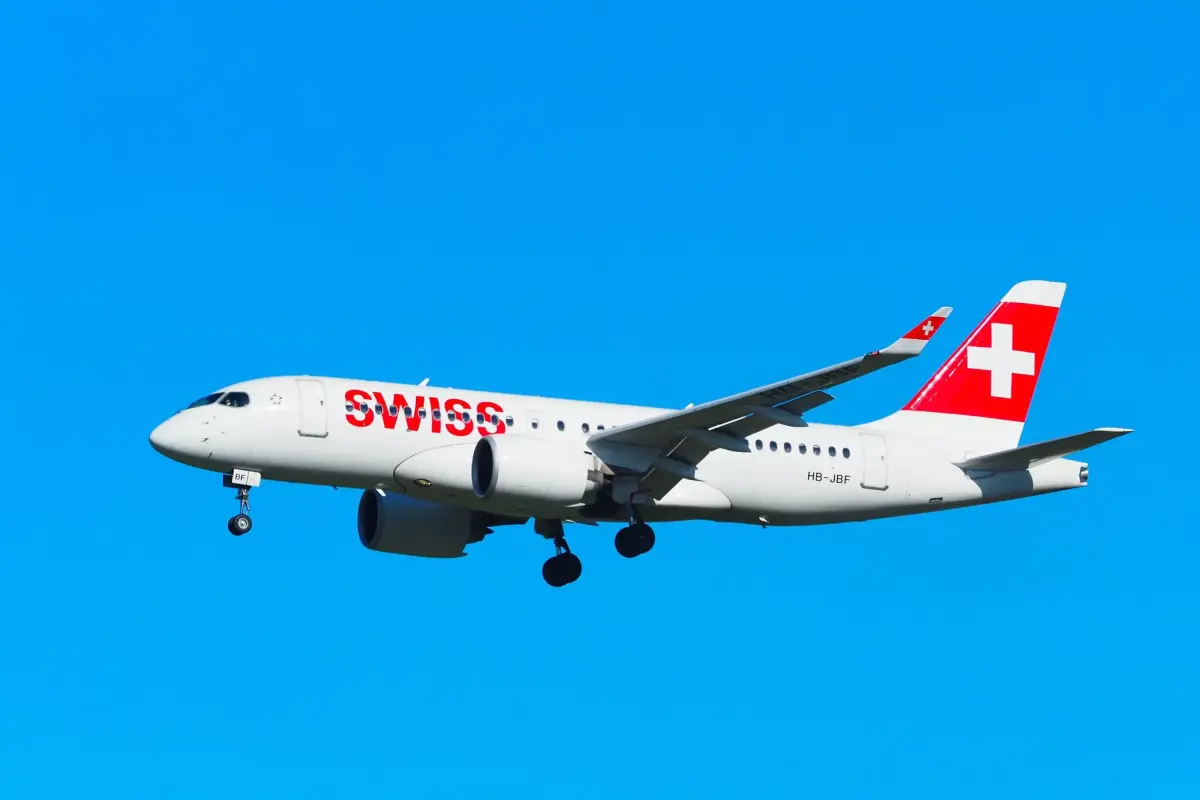

Airbus A220-100 specs, size & range

The Airbus A220-100 (ICAO code BCS1, IATA CS1) is a landplane with 2 jet engines in the medium wake-turbulence category. It is 34.9 m long, a 35.1 m wingspan and a maximum take-off weight of 60,781 kg.

Landplane with 2 jet engines Wake category: Medium Airliners & big jets

A220-100 specifications

Length: 34.90 m (114.5 ft)
Wingspan: 35.10 m (115.2 ft)
Height: 11.80 m (38.7 ft)
Max take-off weight: 60,781 kg (133,999 lb)
Max landing weight: 52,390 kg (115,500 lb)
Max zero-fuel weight: 50,349 kg
Max ramp weight: 61,235 kg
Approach speed: 130 kn (241 km/h)
Absolute ceiling: 41,000 ft (12,497 m)

Official type certificate →

Models & engines

Model	Engines	Certified
A220-100	Pratt & Whitney PW1524G	15 Jun 2016

The Airbus A220-100 is a landplane with 2 jet engines built by Airbus. Air-traffic control and flight-tracking sites identify it by the ICAO type code BCS1, while airline timetables and booking sites use the IATA code CS1. It belongs to the medium wake-turbulence category.

A220-100 size and dimensions

The A220-100 is 34.90 m (114.5 ft) long, has a wingspan of 35.10 m and stands 11.80 m tall. That makes it the #50 longest of 67 airliners & big jets in our database — longer than 25% of them.

A220-100 weight and fuel

The maximum take-off weight is 60,781 kg (133,999 lb) and it may land at up to 52,390 kg — 86% of take-off weight, so after a short flight it has to burn off fuel before landing at full weight. Among airliners & big jets it ranks #55 of 69 by weight. Without fuel it may weigh at most 50,349 kg, leaving up to 10,432 kg for fuel at maximum take-off weight.
