ATR · AT45 · IATA AT5
ATR 42-500 specs, size & range

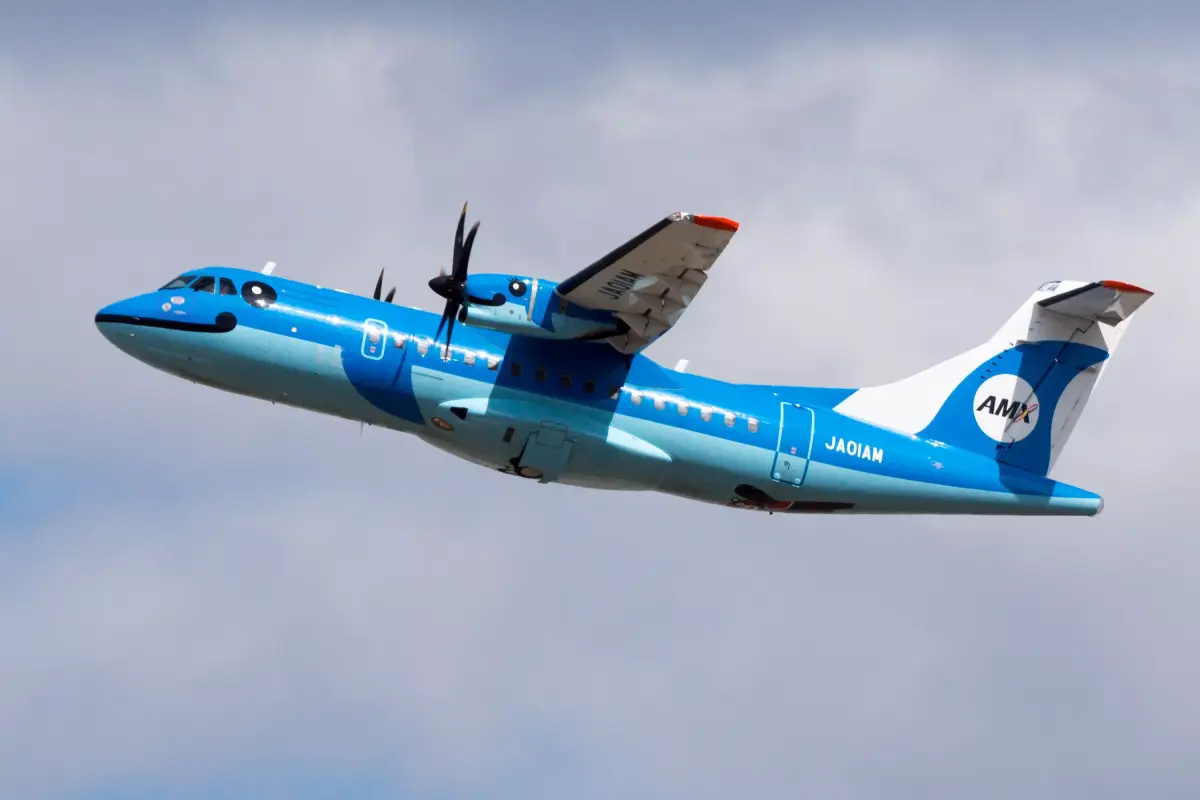

The ATR 42-500 (ICAO code AT45, IATA AT5) is a landplane with 2 turboprop engines in the medium wake-turbulence category. It is a 24.4 m wingspan and a maximum take-off weight of 18,600 kg.
42-500 specifications
- Max landing weight
- 18,300 kg (40,345 lb)
- Max zero-fuel weight
- 16,700 kg
- Max ramp weight
- 18,770 kg
Models & engines
| Model | Engines | Certified |
|---|---|---|
| ATR 42-500 | Pratt & Whitney Canada PW127M / PW127E / PW127F | 28 Jul 1995 |
The ATR 42-500 is a landplane with 2 turboprop engines built by ATR. Air-traffic control and flight-tracking sites identify it by the ICAO type code AT45, while airline timetables and booking sites use the IATA code AT5. It belongs to the medium wake-turbulence category.
42-500 size and dimensions
The 42-500 is has a wingspan of 24.38 m.
42-500 weight and fuel
The maximum take-off weight is 18,600 kg (41,006 lb) and it may land at up to 18,300 kg — 98% of take-off weight. Among turboprops it ranks #7 of 13 by weight. Without fuel it may weigh at most 16,700 kg, leaving up to 1,900 kg for fuel at maximum take-off weight.
42-500 speed and range
On final approach it flies at around 104 knots (193 km/h).
42-500 models and engines
Our database lists 1 certified model of the 42-500: ATR 42-500. The first was certified in July 1995. Engines come from Pratt & Whitney Canada.
Aircraft similar to the 42-500
Comparable turboprops include Douglas C-133 Cargomaster, Antonov An-30, Airbus Defence and Space C295 and Antonov An-140.
Frequently asked questions
What is the ICAO code of the ATR 42-500?
How big is the ATR 42-500?
Which engines does the ATR 42-500 use?
