Boeing · B77L · IATA 77L

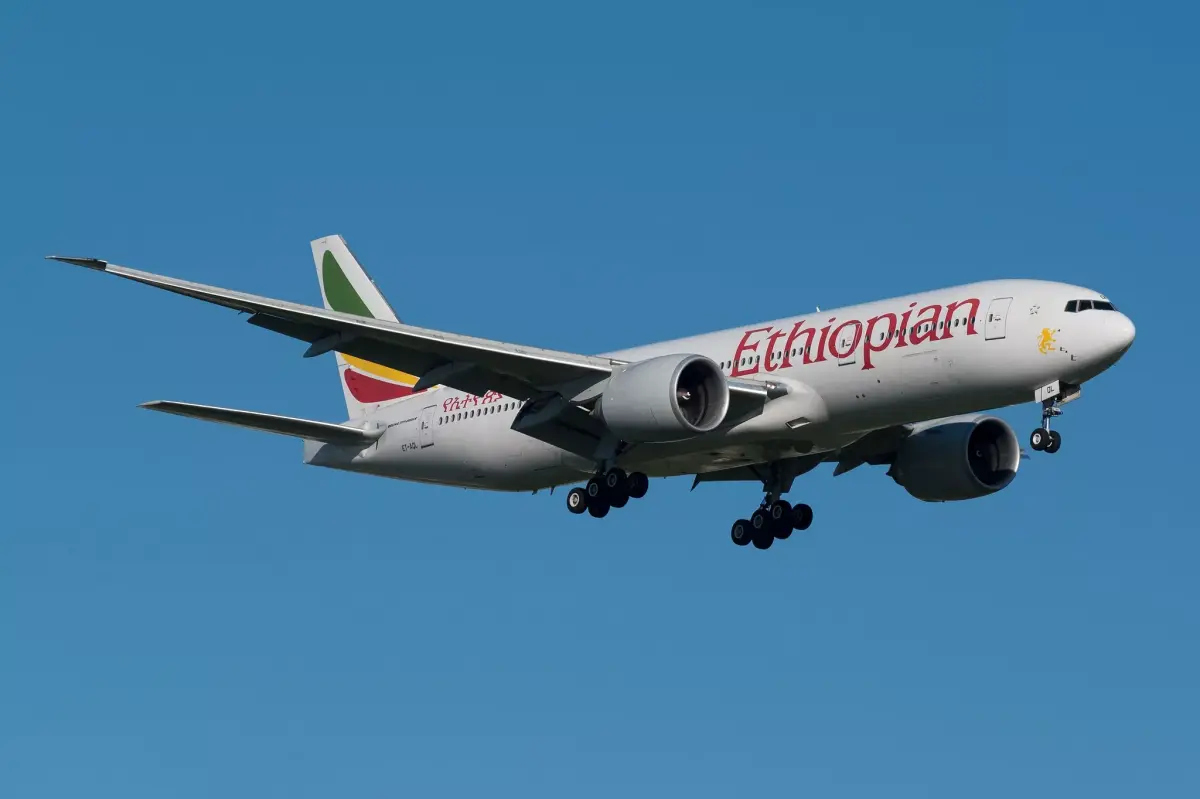

Boeing 777-200LR specs, size & range

The Boeing 777-200LR (ICAO code B77L, IATA 77L) is a landplane with 2 jet engines in the heavy wake-turbulence category. It is 63.7 m long, a 64.8 m wingspan, a maximum take-off weight of 340,194 kg and a range of 15,844 km.

Landplane with 2 jet engines Wake category: Heavy Airliners & big jets

777-200LR specifications

Length: 63.73 m (209.1 ft)
Wingspan: 64.80 m (212.6 ft)
Height: 18.60 m (61.0 ft)
Wing area: 427.8 m² (4,605 sq ft)
Fuselage width: 6.20 m
Fuselage height: 6.20 m
Max take-off weight: 340,194 kg (749,998 lb)
Max landing weight: 223,167 kg (491,998 lb)
Max zero-fuel weight: 209,106 kg
Max ramp weight: 341,101 kg
Cruise speed: 482 kn (893 km/h)
Maximum speed: 511 kn (946 km/h)
Range: 8,555 nm (15,844 km)
Absolute ceiling: 43,100 ft (13,137 m)

Official type certificate →

Models & engines

Model	Engines	Certified
777-200LR	General Electric GE90-110B1 / GE90-115B	2 Feb 2006
777F	General Electric GE90-110B1 / GE90-115B	6 Feb 2006

The Boeing 777-200LR is a landplane with 2 jet engines built by Boeing. Air-traffic control and flight-tracking sites identify it by the ICAO type code B77L, while airline timetables and booking sites use the IATA code 77L. It belongs to the heavy wake-turbulence category, so aircraft landing or taking off behind it must keep extra separation.

777-200LR size and dimensions

The 777-200LR is 63.73 m (209.1 ft) long, has a wingspan of 64.80 m and stands 18.60 m tall. That makes it the #13 longest of 67 airliners & big jets in our database — longer than 79% of them. Its fuselage is 6.20 m wide, wide enough for a twin-aisle cabin. With 427.8 m² of wing, the wing loading at maximum weight is about 795 kg/m².

777-200LR weight and fuel

The maximum take-off weight is 340,194 kg (749,998 lb) and it may land at up to 223,167 kg — 66% of take-off weight, so after a short flight it has to burn off fuel before landing at full weight. Among airliners & big jets it ranks #10 of 69 by weight. Without fuel it may weigh at most 209,106 kg, leaving up to 131,088 kg for fuel at maximum take-off weight.

777-200LR speed and range

It cruises at about 893 km/h (482 knots), faster than 57% of airliners & big jets. Its range of 15,844 km (8,555 nm) is enough to fly non-stop from New York to Singapore (15,350 km) — about 17.7 hours at cruise speed. Its ceiling is 43,100 ft (13,137 m).

777-200LR models and engines

Our database lists 2 certified models of the 777-200LR: 777-200LR and 777F. The first was certified in February 2006, the latest in February 2006. Engines come from General Electric.
