Boeing · B78X · IATA 78J

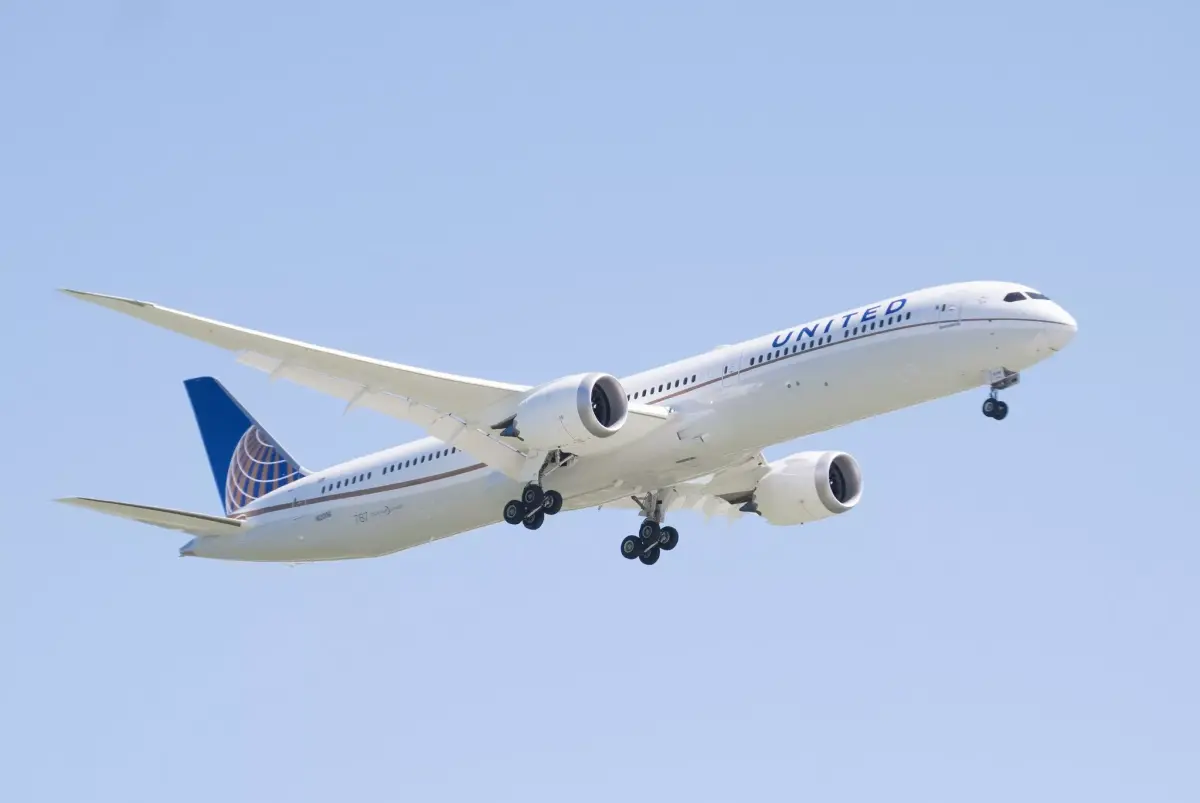

Boeing 787-10 Dreamliner specs, size & range

The Boeing 787-10 Dreamliner (ICAO code B78X, IATA 78J) is a landplane with 2 jet engines in the heavy wake-turbulence category. It is 68.3 m long, a 60.1 m wingspan, a maximum take-off weight of 254,011 kg and a range of 11,908 km.

Landplane with 2 jet engines Wake category: Heavy Airliners & big jets

787-10 Dreamliner specifications

Length: 68.30 m (224.1 ft)
Wingspan: 60.12 m (197.2 ft)
Height: 17.02 m (55.8 ft)
Wing area: 377.0 m² (4,058 sq ft)
Fuselage width: 5.75 m
Fuselage height: 5.75 m
Max take-off weight: 254,011 kg (559,998 lb)
Max landing weight: 201,848 kg (444,998 lb)
Max zero-fuel weight: 192,777 kg
Max ramp weight: 254,692 kg
Fuel capacity: 126,356 L (33,380 US gal)
Cruise speed: 488 kn (904 km/h)
Maximum speed: 516 kn (956 km/h)
Range: 6,430 nm (11,908 km)
Absolute ceiling: 41,100 ft (12,527 m)

Official type certificate →

Models & engines

Model	Engines	Certified
787-10	General Electric GEnx-1B76/P2 / GEnx-1B76A/P2	19 Jan 2018
787-10	Rolls Royce Trent 1000-J3	19 Jan 2018

The Boeing 787-10 Dreamliner is a landplane with 2 jet engines built by Boeing. Air-traffic control and flight-tracking sites identify it by the ICAO type code B78X, while airline timetables and booking sites use the IATA code 78J. It belongs to the heavy wake-turbulence category, so aircraft landing or taking off behind it must keep extra separation.

787-10 Dreamliner size and dimensions

The 787-10 Dreamliner is 68.30 m (224.1 ft) long, has a wingspan of 60.12 m and stands 17.02 m tall. That makes it the #11 longest of 67 airliners & big jets in our database — longer than 84% of them. Its fuselage is 5.75 m wide, wide enough for a twin-aisle cabin. With 377.0 m² of wing, the wing loading at maximum weight is about 674 kg/m².

787-10 Dreamliner weight and fuel

The maximum take-off weight is 254,011 kg (559,998 lb) and it may land at up to 201,848 kg — 79% of take-off weight, so after a short flight it has to burn off fuel before landing at full weight. Among airliners & big jets it ranks #17 of 69 by weight. Without fuel it may weigh at most 192,777 kg, leaving up to 61,234 kg for fuel at maximum take-off weight. The tanks hold 126,356 litres (33,380 US gallons), about 101.1 tonnes of jet fuel.

787-10 Dreamliner speed and range

It cruises at about 904 km/h (488 knots), faster than 73% of airliners & big jets. Its range of 11,908 km (6,430 nm) is enough to fly non-stop from London to Singapore (10,880 km) — about 13.2 hours at cruise speed. Its ceiling is 41,100 ft (12,527 m).

787-10 Dreamliner models and engines

Our database lists 2 certified models of the 787-10 Dreamliner: 787-10 and 787-10. The first was certified in January 2018. Engines come from General Electric and Rolls Royce, so operators can choose the powerplant.
