Bombardier · CRJ7 · IATA CR7

Bombardier CRJ-700 specs, size & range

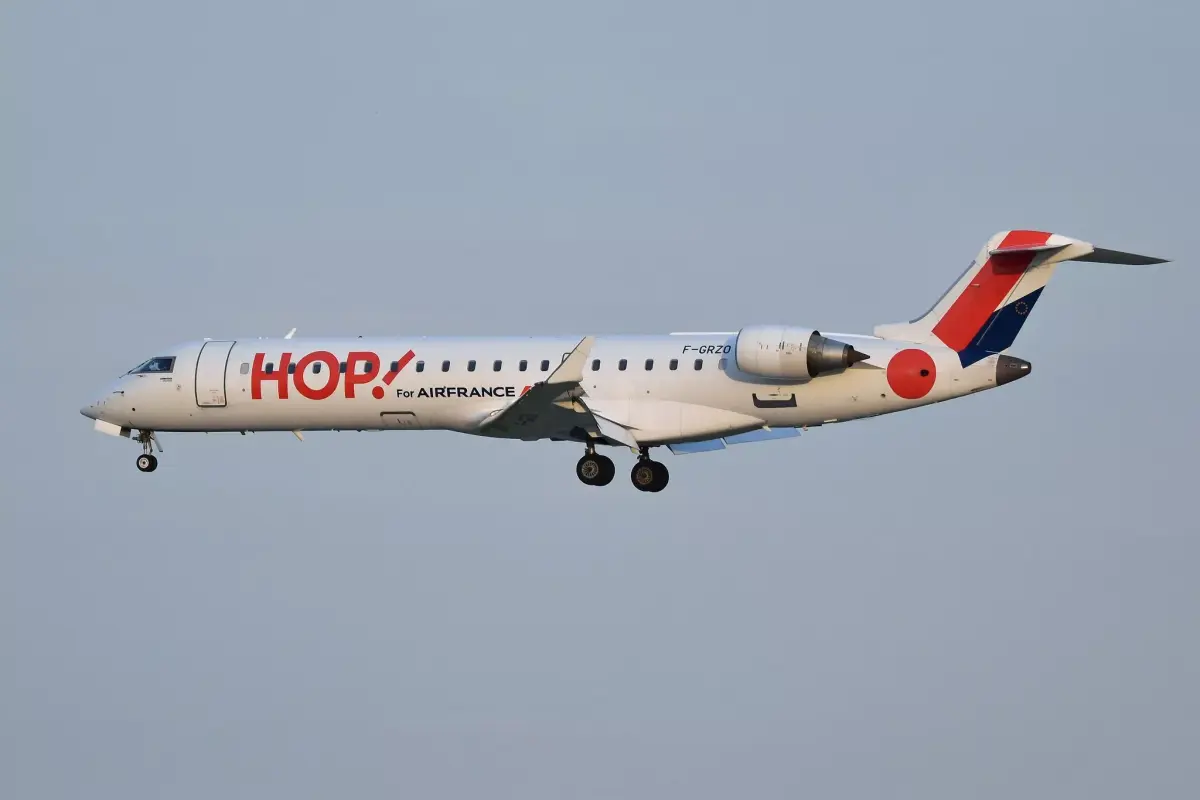

The Bombardier CRJ-700 (ICAO code CRJ7, IATA CR7) is a landplane with 2 jet engines in the medium wake-turbulence category. It is 32.3 m long, a 23.2 m wingspan, a maximum take-off weight of 32,999 kg and a range of 2,552 km.

Landplane with 2 jet engines Wake category: Medium Airliners & big jets

CRJ-700 specifications

Length: 32.30 m (106.0 ft)
Wingspan: 23.20 m (76.1 ft)
Height: 7.60 m (24.9 ft)
Wing area: 70.6 m² (760 sq ft)
Fuselage width: 2.70 m
Fuselage height: 2.70 m
Max take-off weight: 32,999 kg (72,750 lb)
Max landing weight: 30,391 kg (67,001 lb)
Max zero-fuel weight: 28,260 kg
Max ramp weight: 33,113 kg
Fuel capacity: 10,989 L (2,903 US gal)
Cruise speed: 447 kn (828 km/h)
Maximum speed: 473 kn (876 km/h)
Approach speed: 135 kn (250 km/h)
Range: 1,378 nm (2,552 km)
Service ceiling: 41,000 ft (12,497 m)

Official type certificate →

The Bombardier CRJ-700 is a landplane with 2 jet engines built by Bombardier. Air-traffic control and flight-tracking sites identify it by the ICAO type code CRJ7, while airline timetables and booking sites use the IATA code CR7. It belongs to the medium wake-turbulence category.

CRJ-700 size and dimensions

The CRJ-700 is 32.30 m (106.0 ft) long, has a wingspan of 23.20 m and stands 7.60 m tall. That makes it the #54 longest of 67 airliners & big jets in our database — longer than 19% of them. Its fuselage is 2.70 m wide. With 70.6 m² of wing, the wing loading at maximum weight is about 467 kg/m².

CRJ-700 weight and fuel

The maximum take-off weight is 32,999 kg (72,750 lb) and it may land at up to 30,391 kg — 92% of take-off weight. Among airliners & big jets it ranks #66 of 69 by weight. Without fuel it may weigh at most 28,260 kg, leaving up to 4,739 kg for fuel at maximum take-off weight. The tanks hold 10,989 litres (2,903 US gallons), about 8.8 tonnes of jet fuel.

CRJ-700 speed and range

It cruises at about 828 km/h (447 knots), faster than 25% of airliners & big jets. Its range of 2,552 km (1,378 nm) is enough to fly non-stop from Warsaw to Barcelona (1,870 km) — about 3.1 hours at cruise speed. On final approach it flies at around 135 knots (250 km/h), ICAO approach category C. Its ceiling is 41,000 ft (12,497 m).
