Bücker · BU31

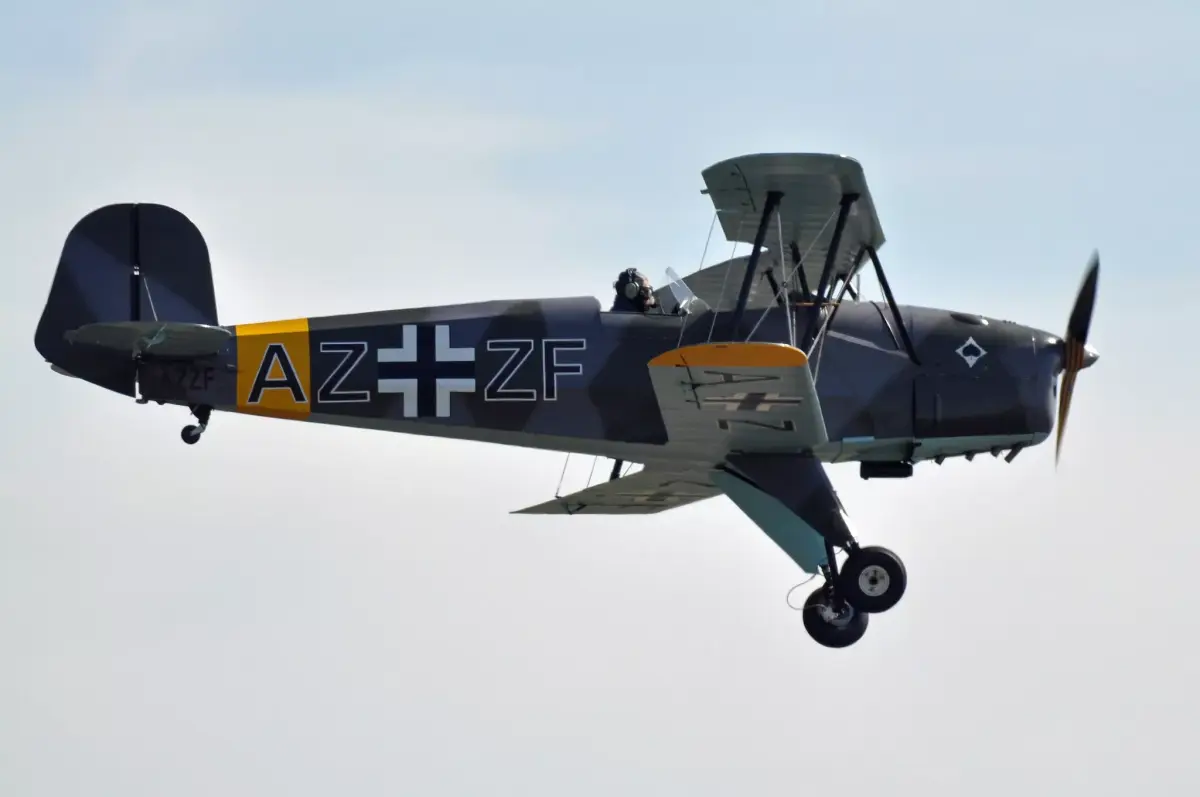

Bücker Bü 131 Jungmann specs, size & range

The Bücker Bü 131 Jungmann (ICAO code BU31) is a landplane with one piston engine in the light wake-turbulence category. It is 6.6 m long, a 7.4 m wingspan and a range of 648 km.

Landplane with one piston engine Wake category: Light Piston & light aircraft

Bü 131 Jungmann specifications

Length: 6.62 m (21.7 ft)
Wingspan: 7.40 m (24.3 ft)
Height: 2.25 m (7.4 ft)
Wing area: 13.5 m² (145 sq ft)
Cruise speed: 92 kn (170 km/h)
Maximum speed: 99 kn (183 km/h)
Approach speed: 30 kn (56 km/h)
Range: 350 nm (648 km)
Service ceiling: 14,100 ft (4,298 m)

The Bücker Bü 131 Jungmann is a landplane with one piston engine built by Bücker. Air-traffic control and flight-tracking sites identify it by the ICAO type code BU31. It belongs to the light wake-turbulence category.

Bü 131 Jungmann size and dimensions

The Bü 131 Jungmann is 6.62 m (21.7 ft) long, has a wingspan of 7.40 m and stands 2.25 m tall. That makes it the #22 longest of 26 piston & light aircraft in our database — longer than 12% of them.

Bü 131 Jungmann speed and range

It cruises at about 170 km/h (92 knots), faster than 30% of piston & light aircraft. Its range of 648 km (350 nm) suits short regional hops — about 3.8 hours at cruise speed. On final approach it flies at around 30 knots (56 km/h). Its ceiling is 14,100 ft (4,298 m).
