Boeing · B736 · IATA 736

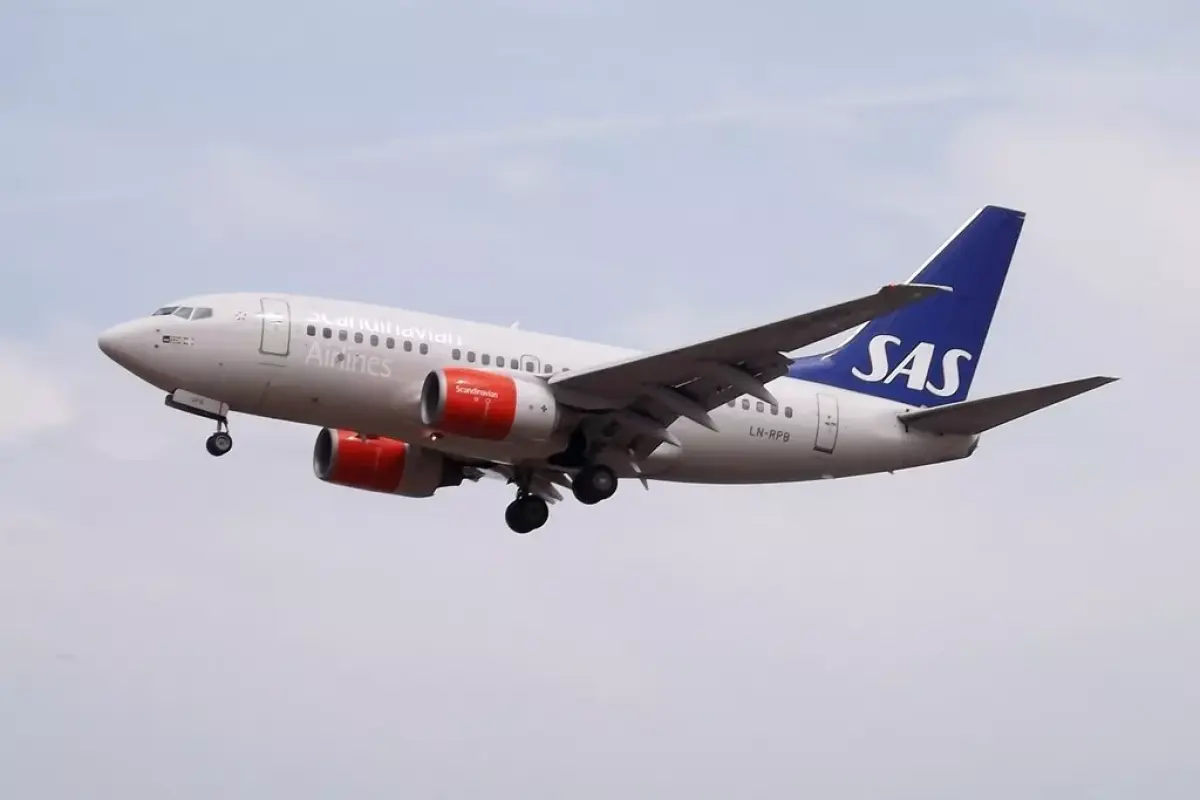

Boeing 737-600 specs, size & range

The Boeing 737-600 (ICAO code B736, IATA 736) is a landplane with 2 jet engines in the medium wake-turbulence category. It is 31.2 m long, a 34.3 m wingspan and a maximum take-off weight of 65,997 kg.

Landplane with 2 jet engines Wake category: Medium Airliners & big jets

737-600 specifications

Length: 31.20 m (102.4 ft)
Wingspan: 34.32 m (112.6 ft)
Height: 12.57 m (41.2 ft)
Wing area: 124.6 m² (1,341 sq ft)
Fuselage width: 3.76 m
Fuselage height: 4.01 m
Max take-off weight: 65,997 kg (145,498 lb)
Max landing weight: 54,657 kg (120,498 lb)
Max zero-fuel weight: 51,709 kg
Max ramp weight: 66,224 kg
Fuel capacity: 26,024 L (6,875 US gal)
Cruise speed: 453 kn (839 km/h)
Approach speed: 125 kn (232 km/h)
Absolute ceiling: 41,000 ft (12,497 m)

Official type certificate →

Models & engines

Model	Engines	Certified
737-600	CFM International CFM56-7B18/3 / CFM56-7B20 / CFM56-7B20/2 / CFM56-7B20/3 / CFM56-7B20E / CFM56-7B22 / CFM56-7B22/2 / CFM56-7B22/3 / CFM56-7B22E	12 Aug 1998

The Boeing 737-600 is a landplane with 2 jet engines built by Boeing. Air-traffic control and flight-tracking sites identify it by the ICAO type code B736, while airline timetables and booking sites use the IATA code 736. It belongs to the medium wake-turbulence category.

737-600 size and dimensions

The 737-600 is 31.20 m (102.4 ft) long, has a wingspan of 34.32 m and stands 12.57 m tall. That makes it the #57 longest of 67 airliners & big jets in our database — longer than 15% of them. Its fuselage is 3.76 m wide, the width of a single-aisle cabin with six seats per row. With 124.6 m² of wing, the wing loading at maximum weight is about 530 kg/m².

737-600 weight and fuel

The maximum take-off weight is 65,997 kg (145,498 lb) and it may land at up to 54,657 kg — 83% of take-off weight, so after a short flight it has to burn off fuel before landing at full weight. Among airliners & big jets it ranks #50 of 69 by weight. Without fuel it may weigh at most 51,709 kg, leaving up to 14,288 kg for fuel at maximum take-off weight. The tanks hold 26,024 litres (6,875 US gallons), about 20.8 tonnes of jet fuel.

737-600 speed and range

It cruises at about 839 km/h (453 knots), faster than 32% of airliners & big jets. On final approach it flies at around 125 knots (232 km/h), ICAO approach category C. Its ceiling is 41,000 ft (12,497 m).
