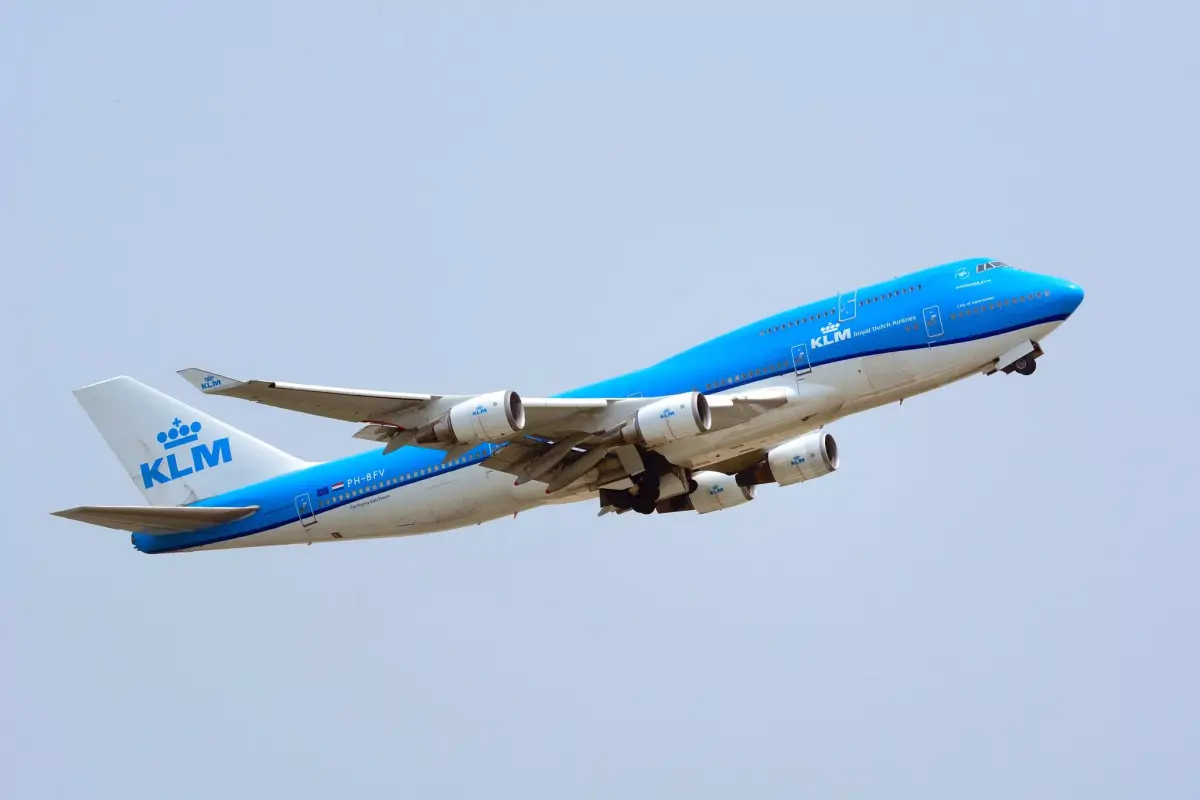

Boeing 747-400 specs, size & range

The Boeing 747-400 is a landplane with 4 jet engines built by Boeing. Air-traffic control and flight-tracking sites identify it by the ICAO type code B744, while airline timetables and booking sites use the IATA code 744. It belongs to the heavy wake-turbulence category, so aircraft landing or taking off behind it must keep extra separation.

747-400 size and dimensions

The 747-400 is 70.60 m (231.6 ft) long, has a wingspan of 64.44 m and stands 19.40 m tall. That makes it the #6 longest of 67 airliners & big jets in our database — longer than 87% of them. With 525.0 m² of wing, the wing loading at maximum weight is about 756 kg/m².

747-400 weight and fuel

The maximum take-off weight is 396,893 kg (874,998 lb) and it may land at up to 285,762 kg — 72% of take-off weight, so after a short flight it has to burn off fuel before landing at full weight. Among airliners & big jets it ranks #3 of 69 by weight. Without fuel it may weigh at most 246,754 kg, leaving up to 150,139 kg for fuel at maximum take-off weight. The tanks hold 216,840 litres (57,283 US gallons), about 173.5 tonnes of jet fuel.

747-400 speed and range

It cruises at about 933 km/h (504 knots), faster than 82% of airliners & big jets. Its range of 14,205 km (7,670 nm) is enough to fly non-stop from Doha to Auckland (13,800 km) — about 15.2 hours at cruise speed. On final approach it flies at around 157 knots (291 km/h), which puts it in ICAO approach category D. Its ceiling is 45,100 ft (13,746 m).

747-400 models and engines

Our database lists 9 certified models of the 747-400: 747-400, 747-400, 747-400, 747-400F, 747-400F, 747-400F and 3 more. The first was certified in January 1989, the latest in December 2005. Engines come from General Electric, Pratt & Whitney and Rolls Royce, so operators can choose the powerplant.

Aircraft similar to the 747-400

Comparable airliners & big jets include Airbus A330-743L Beluga XL, Lockheed L-1011 TriStar, Antonov An-225 Mriya and Antonov An-124 Ruslan.
