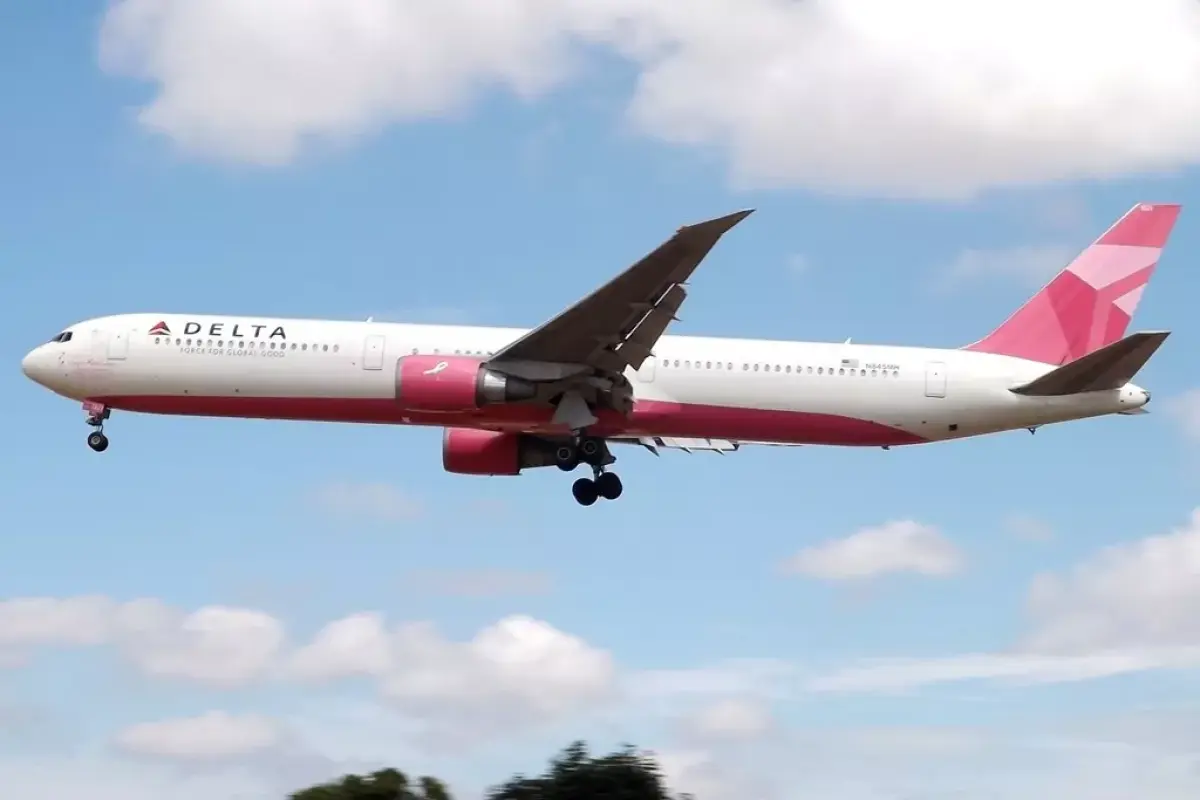

Boeing · B764 · IATA 764

Boeing 767-400 specs, size & range

The Boeing 767-400 (ICAO code B764, IATA 764) is a landplane with 2 jet engines in the heavy wake-turbulence category. It is 51.9 m long, a 61.4 m wingspan, a maximum take-off weight of 204,116 kg and a range of 10,418 km.

Landplane with 2 jet engines Wake category: Heavy Airliners & big jets

767-400 specifications

Length: 51.90 m (170.3 ft)
Wingspan: 61.40 m (201.4 ft)
Height: 16.80 m (55.1 ft)
Wing area: 290.7 m² (3,129 sq ft)
Fuselage width: 5.03 m
Fuselage height: 5.41 m
Max take-off weight: 204,116 kg (449,998 lb)
Max landing weight: 158,757 kg (349,999 lb)
Max zero-fuel weight: 149,685 kg
Max ramp weight: 204,569 kg
Fuel capacity: 91,400 L (24,145 US gal)
Cruise speed: 486 kn (900 km/h)
Approach speed: 150 kn (278 km/h)
Range: 5,625 nm (10,418 km)
Absolute ceiling: 43,100 ft (13,137 m)

Official type certificate →

Models & engines

Model	Engines	Certified
767-400ER	General Electric CF6-80C2B8F	20 Jul 2000

The Boeing 767-400 is a landplane with 2 jet engines built by Boeing. Air-traffic control and flight-tracking sites identify it by the ICAO type code B764, while airline timetables and booking sites use the IATA code 764. It belongs to the heavy wake-turbulence category, so aircraft landing or taking off behind it must keep extra separation.

767-400 size and dimensions

The 767-400 is 51.90 m (170.3 ft) long, has a wingspan of 61.40 m and stands 16.80 m tall. That makes it the #27 longest of 67 airliners & big jets in our database — longer than 60% of them. Its fuselage is 5.03 m wide, wide enough for a twin-aisle cabin. With 290.7 m² of wing, the wing loading at maximum weight is about 702 kg/m².

767-400 weight and fuel

The maximum take-off weight is 204,116 kg (449,998 lb) and it may land at up to 158,757 kg — 78% of take-off weight, so after a short flight it has to burn off fuel before landing at full weight. Among airliners & big jets it ranks #28 of 69 by weight. Without fuel it may weigh at most 149,685 kg, leaving up to 54,431 kg for fuel at maximum take-off weight. The tanks hold 91,400 litres (24,145 US gallons), about 73.1 tonnes of jet fuel.

767-400 speed and range

It cruises at about 900 km/h (486 knots), faster than 66% of airliners & big jets. Its range of 10,418 km (5,625 nm) is enough to fly non-stop from Frankfurt to Tokyo (9,550 km) — about 11.6 hours at cruise speed. On final approach it flies at around 150 knots (278 km/h), which puts it in ICAO approach category D. Its ceiling is 43,100 ft (13,137 m).
