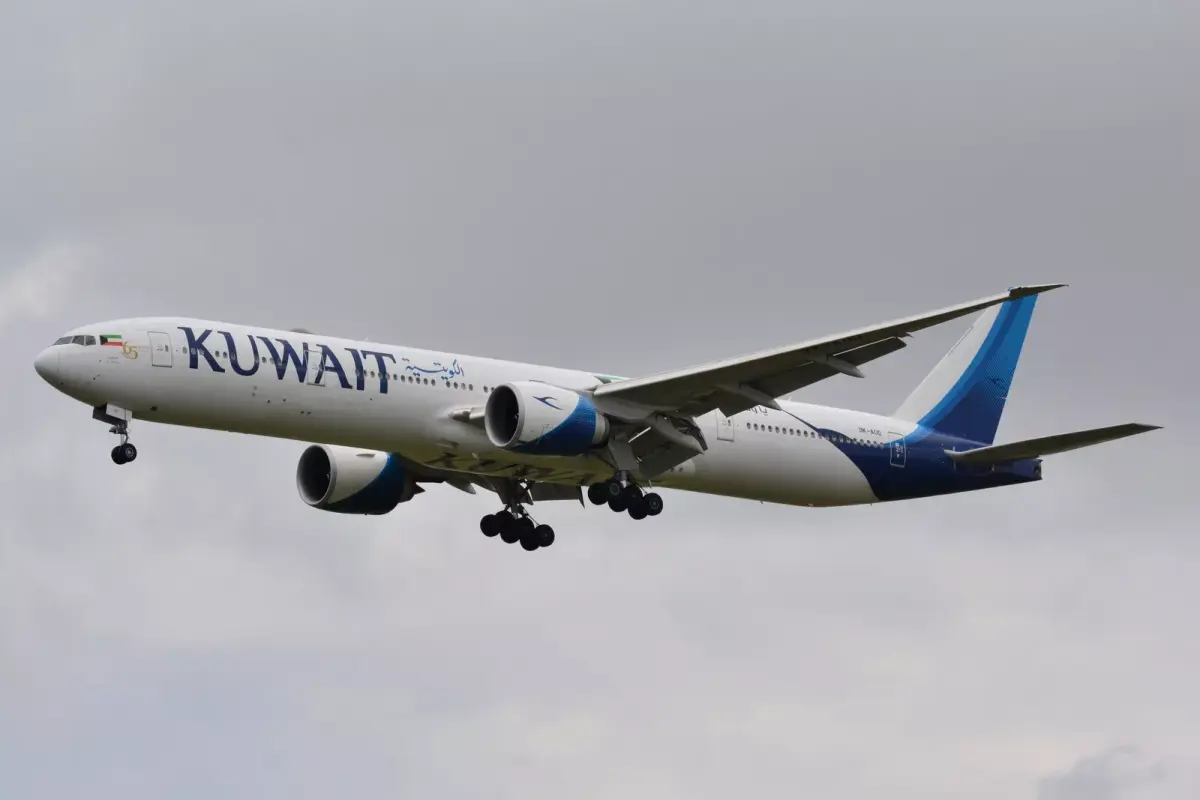

Boeing · B773 · IATA 773

Boeing 777-300 specs, size & range

The Boeing 777-300 (ICAO code B773, IATA 773) is a landplane with 2 jet engines in the heavy wake-turbulence category. It is 73.9 m long, a 60.9 m wingspan, a maximum take-off weight of 299,370 kg and a range of 11,168 km.

Landplane with 2 jet engines Wake category: Heavy Airliners & big jets

777-300 specifications

Length: 73.86 m (242.3 ft)
Wingspan: 60.90 m (199.8 ft)
Height: 18.50 m (60.7 ft)
Wing area: 427.8 m² (4,605 sq ft)
Fuselage width: 6.20 m
Fuselage height: 6.20 m
Max take-off weight: 299,370 kg (659,997 lb)
Max landing weight: 237,682 kg (523,998 lb)
Max zero-fuel weight: 224,528 kg
Max ramp weight: 300,278 kg
Cruise speed: 482 kn (893 km/h)
Maximum speed: 511 kn (946 km/h)
Approach speed: 140 kn (259 km/h)
Range: 6,030 nm (11,168 km)
Absolute ceiling: 43,100 ft (13,137 m)

Official type certificate →

Models & engines

Model	Engines	Certified
777-300	Pratt & Whitney PW4090 / PW4098	4 May 1998
777-300	Rolls Royce Trent 892	4 May 1998

The Boeing 777-300 is a landplane with 2 jet engines built by Boeing. Air-traffic control and flight-tracking sites identify it by the ICAO type code B773, while airline timetables and booking sites use the IATA code 773. It belongs to the heavy wake-turbulence category, so aircraft landing or taking off behind it must keep extra separation.

777-300 size and dimensions

The 777-300 is 73.86 m (242.3 ft) long, has a wingspan of 60.90 m and stands 18.50 m tall. That makes it the #4 longest of 67 airliners & big jets in our database — longer than 93% of them. Its fuselage is 6.20 m wide, wide enough for a twin-aisle cabin. With 427.8 m² of wing, the wing loading at maximum weight is about 700 kg/m².

777-300 weight and fuel

The maximum take-off weight is 299,370 kg (659,997 lb) and it may land at up to 237,682 kg — 79% of take-off weight, so after a short flight it has to burn off fuel before landing at full weight. Among airliners & big jets it ranks #15 of 69 by weight. Without fuel it may weigh at most 224,528 kg, leaving up to 74,842 kg for fuel at maximum take-off weight.

777-300 speed and range

It cruises at about 893 km/h (482 knots), faster than 57% of airliners & big jets. Its range of 11,168 km (6,030 nm) is enough to fly non-stop from London to Singapore (10,880 km) — about 12.5 hours at cruise speed. On final approach it flies at around 140 knots (259 km/h), ICAO approach category C. Its ceiling is 43,100 ft (13,137 m).

777-300 models and engines

Our database lists 2 certified models of the 777-300: 777-300 and 777-300. The first was certified in May 1998. Engines come from Pratt & Whitney and Rolls Royce, so operators can choose the powerplant.
